4-Bedroom, 3357 Sq Ft Florida Style House Plan - 133-1056 - Front Exterior

About Plan # 133-1056

About Plan # 133-1056

3357 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 69' 0" WIDTH 100' 0" DEPTH 3 GARAGE BAY

The Casa Lago II House Plan is a single story, Mediterranean style house plan with 3357 total living square feet. Some of the special features of this Florida house plan include: Main Floor Bed & Bath, Main Floor Master, Split Bedrooms, Walk-in Closet, Covered Entry, Screened Lanai, Suited for corner lot, Suited for sloping lot, Suited for view site, Over-Sized Garage, Side-Entry Garage, Handicapped Adaptable, Storage, Family Room, Friend's Entry, Open floor plan, Study/Library, Volume/vaulted ceilings, Island, Nook/Breakfast Area, Peninsula/Eating Bar, Walk-in Pantry.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

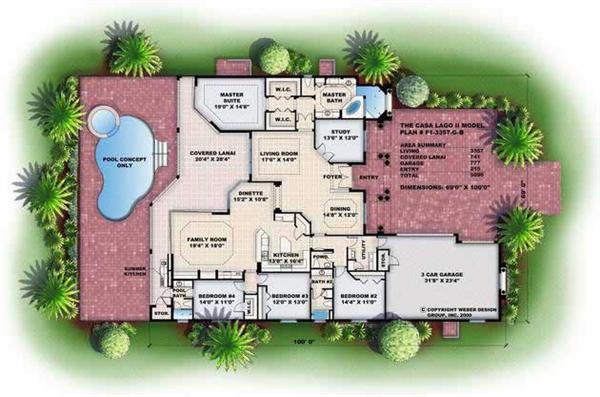

Home Plan: #133-1056 Floor Plan First Story - first story Floor Plan First Story of Florida Style Plan #133-1056
Home Plan: #133-1056 Floor Plan First Story - first story Floor Plan First Story of Florida Style Plan #133-1056
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 133-1056
Floors:
1
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
3357
Main Floor:
3357
Unfinished Sq Ft:

Dimensions

Width:
69' 0"
Depth:
100' 0"

Architectural Styles

Mediterranean
Concrete Block/ ICF Design
Florida Style
Handicap Accessible

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

6/12

Special Feature

Dining Room
Family Room
Main Level Laundry
Library
Split Bathroom
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Exterior Wall Framing

Concrete

Building Lot Type

View Lot

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Front Porch
Friend's Entry
Screened Porch/Sunroom
Screened in Lanai
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Please Note that the designer's office will be closed between 8/4/22 to 8/9/2022. Any orders placed during this time will be processed once the designer resumes office after 8/9-2022.
