House Plan #175-1045
Plan Name: 175-1045   Bedrooms: 3   Width: 64' 6"
Square Feet: 2851 Sq Ft.   Bathrooms: Full Baths: 3
Half Baths: 0
  Depth: 59' 0"
Floors: 2   Garage Bays: 2 Ridge Height: 28'1'

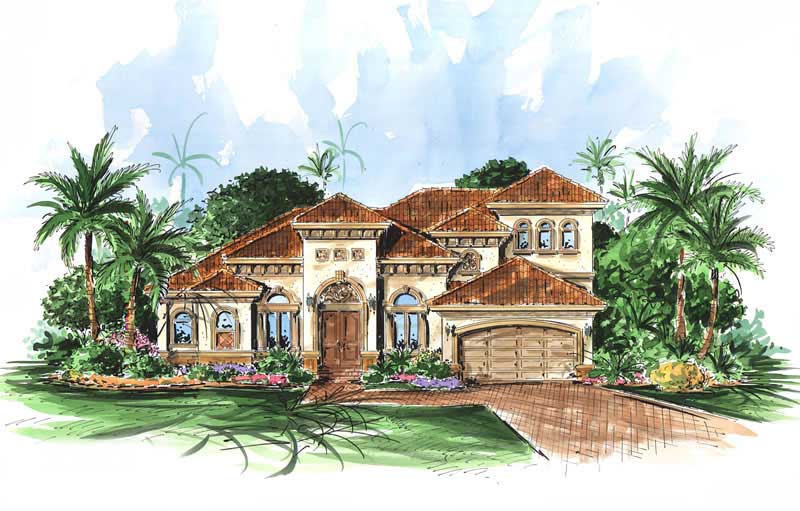

House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  Minimum Construction Package (5 Sets) $1,350.00
  Standard Construction Package (8 Sets) $1,425.00
  CAD File $1,500.00
  Reproducible Master $1,500.00
FOUNDATION OPTIONS
  Slab $0.00
OTHER OPTIONS / ADD-ONS
Square Footage House Plan Description
Heated Sq Ft: 2851
Main Floor: 2400
Upper Floor: 451
Unfinished Sq ft

Mediterranean style that will fit on a smaller lot defines this San Gabriel home plan of over 2800 sq. ft. Your guests will feel welcome in their own quarters upstairs complete with covered lanai, full bath, and wet bar. Downstairs floor plan find the master suite with two walk-in closets and access to the lanai. Family room, living room, dinette, kitchen with island and walk-in pantry, dining area, laundry, another bathroom and bedroom, and den complete the first floor. This house plans special features include: Walk-in Pantry Peninsula/Eating Bar Nook/Breakfast Area Island Volume/vaulted ceilings Open floor plan Loft/Balcony Family Room Den/Home Office Handicapped Adaptable Screened Lanai Rear covered lanai Covered front porch Walk-in Closet Teen Suite Split Bedrooms Master Sitting Area Main Floor Master This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas.

Home Features
  Architectural Styles
Mediterranean
Beachfront
Coastal
Spanish
Concrete Block/ ICF Design
Florida Style

  Ceiling Height
10 Foot Ceiling
9 Foot Ceiling

  Exterior Wall Material
Stucco

  Garage Type
Attached Garage
Front Entry

  Kitchen Features
Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

  Master Suite Features
Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area

  Porches and Exterior Features
Screened in Lanai
Covered Lanai
Covered Front Porch
Covered Rear Porch

  Roof Pitch
6/12

  Roofing Material
Tiles

  Special Feature
Balcony
Den
Split Bathroom
Home Office
Family Room
Main Level Laundry
Loft

House Plan : 175-1045 Images
Reverse Plan Images
   House Plan #175-1045
Image not available.
  Home Plan: 175-1045 FLOOR PLAN
FLOOR PLAN
